	Luftwaffe radar stations (Flugmeldemess-Stellungen).

	Notional description of barracks area.

	Home

	Back





	The barracks area was of a standardized lay-out, consisting of standard buildings in brick or wood. The U-shaped accommodation barrack is very conspicuous on an aerial photo, but it was also built in an L-shaped or linear model. The T-Hütte and Wirtschaftsbaracke were also very characteristic and they were always present in the shape depicted below. The small garden, sometimes with a flagpole or a monument in the center, was also a commonly seen feature.

	I think it is important and appropriate to mention that this configuration of barracks has been documented in Germany and Denmark only. For a detailed description of the Stellungen in Denmark, please see: Books.


	Notional lay-out of barracks area.



	The barracks area in HABICHT 1946. Some barracks have been dismantled. Please note the remains of the garden.		The area in AMEISE as seen from a Heinrich-Peiler tower 1944. © Museums Center Hanstholm.



	*The area in FAULTIER summer 1945. Part of the U-shaped barrack has been detached, the T-Hütte* and Wirtschaftsbaracke are quite conspicuous.**		AAR in 1988. Part of the U-shaped barrack was (is ?) still standing.

	In the Netherlands a whole range of special bunkers were used in the costal area Stellungen - the so called Küver-Bunkers. In the in-land sites the buildings were of brick with a flat concrete roof, some of them in Stahlbetonskelet Bauweise. These partly or fully replaced the barracks. For more details on the Küver-Bunkers please see the excellent book by Klaas van Brakel and Jeroen Rijpsma "Küver-Bunkers".

	In France and Poland a series of altogether different buildings were used. Based on photographic evidence these seems to be the of the same standard design. It was specified, that they should offer protection against small arms fire (Blockhäuser (Bodenwaffenbeschuss-sicher)) and frequently they were fully or partly dug in. Based on "Richtlinien für den Ausbau von Such-u. Grossuchstellungen für den Tag- u. Nachtjagd im bereich des Höh.Jafü West g.Kdos 20.7.1943" these designs were:

	Auswertebaracken: H 43* and H 44.*
	Betriebsstelle für Funk und Leuchtfeuer.
	Geschäftszimmerbaracken: Typ 44 and 52.
	Wirtschaftsbaracken: Typ 62, 63, 45, 46, 56 and 55.
	Offiziers-Unterkünfte: Typ 40 and 51.
	Mannschafts-Unterkünfte: Typ 41, 41a, 41b, 41Ab, 42, 42b, 53, 43 and 54.
	Ln.-Helferinnen-Unterkünfte: H 59.
	Aufenthaltsbaracke: Typ 47.
	Abort- und Waschbaracken: Typ 61 and 48.
	Waschbaracken: Typ 49
	Revirbaracken: Typ 57, 57A, 58.

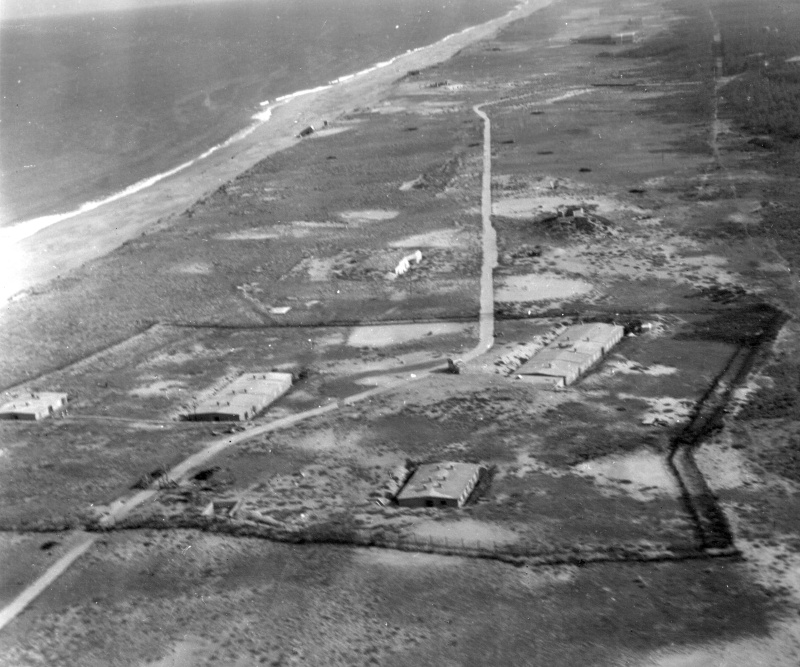

	A bunker (L 486?) and dug in barracks.


	Betriebsstelle für Funk und Leuchtfeuer.		*Geschäftszimmerbaracke Typ 44.*


	*Mannschafts-Unterkünft Typ 41.*		*Mannschafts-Unterkünft Typ 42.*


	*Ln.-Helferinnen-Unterkünfte H 59.*		*Typ 53.*


	*Typ 54.*		*Revirbaracken probably of Typ 57, 57A or 58.*

	Blockhäuser (Bodenwaffenbeschuss-sicher) in PFERD.
